Beyond the Basics: Your Guide to Upright, Display, and Blast Chillers
Why Commercial Chillers Are Essential for Your Kitchen

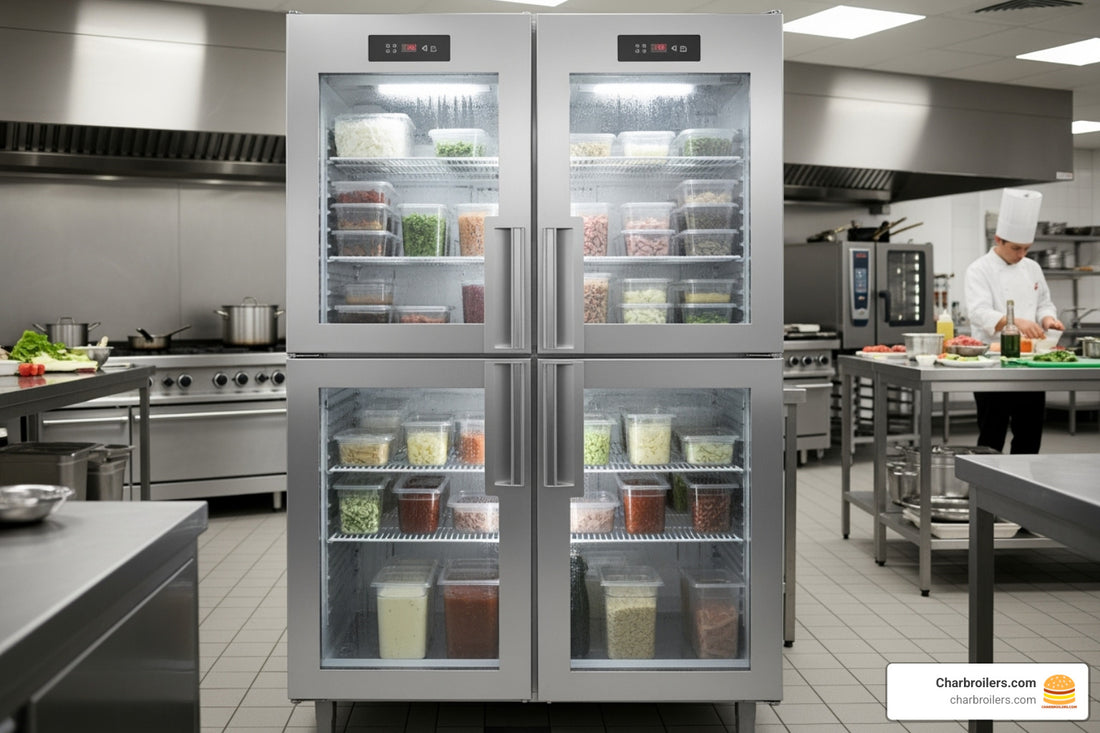

An upright chiller 4 door is a commercial refrigeration unit that provides large-capacity cold storage with four separate compartments for organized food storage. These units typically offer 1000-1400+ liters of capacity, operate at temperatures between 2°C to 8°C, and feature stainless steel construction for durability and hygiene.
Key specifications for 4-door upright chillers:
- Capacity: 1075L to 1410L typical range
- Temperature: +2°C to +8°C (chiller) vs -15°C to -22°C (freezer)
- Dimensions: Approximately 1200-1480mm (W) x 800-840mm (D) x 2000-2060mm (H)
- Power: 220V-230V, with 3/8 HP motors for chillers, 7/8 HP for freezers
- Construction: AISI 304 stainless steel exterior and interior
- Refrigerants: R134a for chillers, R404a for freezers
Running a busy kitchen means every square inch counts. Whether you're storing fresh produce, prepped ingredients, or dairy products, the right commercial chiller keeps your food safe while maximizing your storage space. The four-door configuration gives you the flexibility to organize different food types while maintaining easy access during peak service hours.
Chiller vs. Freezer vs. Blast Chiller - the key differences:
- Chiller: Maintains +2°C to +8°C for fresh food storage
- Freezer: Operates at -15°C to -22°C for frozen food preservation
- Blast Chiller: Rapidly cools hot food from 90°C to 3°C in 90 minutes
I'm Sean Kearney from Charbroilers.com, and with over a decade in the restaurant equipment industry, I've helped countless kitchen operators find the right refrigeration solutions. My experience has shown me that choosing the right upright chiller 4 door can make the difference between smooth service and kitchen chaos during your busiest hours.
Upright chiller 4 door terms simplified:
- nsf ansi standard 7 commercial refrigerators and freezers
- small commercial freezer
- under cabinet freezer
Decoding the Upright Chiller 4 Door
Picture this: it's Saturday night, your kitchen is packed, and your team needs quick access to fresh ingredients without losing precious cold air every time someone opens a door. That's exactly where an upright chiller 4 door shines brightest.
These commercial refrigeration powerhouses are built for maximum storage and smart organization in high-volume kitchens. The four-door design isn't just about looks – it's about creating separate zones for different ingredients while maintaining perfect accessibility during your busiest hours. Think of it as having four mini walk-ins right at your fingertips.
The stainless steel construction you'll find on quality units isn't just for show either. It's your first line of defense against the daily battle scars of commercial kitchen life – from splashes and spills to the constant opening and closing that happens during service.
For a complete breakdown of how these units fit into your overall refrigeration strategy, check out our guide: Commercial Refrigeration Equipment Explained: No Sweat!
Key Features and Benefits of an Upright Chiller 4 Door
What makes an upright chiller 4 door such a game-changer in busy kitchens? Let me walk you through the features that'll make your life easier and your operation more efficient.
The large capacity is the first thing you'll notice. With storage ranging from 1075L to 1410L, you're looking at serious space for all your chilled goods. But here's where it gets smart – those multiple compartments let you create dedicated zones. Dairy in one section, prepped vegetables in another, proteins in the third, and sauces in the fourth. No more digging around or worrying about cross-contamination.
Temperature consistency is where these units really prove their worth. Advanced digital controls work with forced air circulation to eliminate those frustrating hot spots that can spoil your carefully prepped ingredients. Your food stays at the perfect temperature from top shelf to bottom.
Energy efficiency might not be exciting, but your utility bills will thank you. Features like high-density polyurethane foam insulation and self-closing doors keep the cold air where it belongs – inside the unit. Those auto-closing doors are lifesavers when your team is rushing and might forget to push a door shut completely.
The adjustable shelving gives you flexibility that rigid shelves just can't match. Most units come with height-adjustable wire shelves, often with PVC coating or stainless steel options. Need to fit tall containers? No problem. Prefer more shelf levels for smaller items? Easy adjustment.
Modern digital controls from quality manufacturers make temperature management foolproof. LED displays let you check temperatures at a glance, and precise controls ensure your ingredients stay in that critical 2°C to 8°C range that keeps them fresh and safe.
Typical Dimensions and Capacity for an Upright Chiller 4 Door
Before you fall in love with an upright chiller 4 door, let's talk about the practical stuff – will it actually fit in your kitchen, and how much can it really hold?
Capacity ranges from around 1029 liters on the smaller end up to an impressive 1410L for larger models. To put that in perspective, you're looking at enough space to store several days' worth of ingredients for a busy restaurant. Models like the WRT-1075L-R4/F4 offer 1075L of storage, while larger units can reach 1410L capacity.
External dimensions require some serious planning. These units typically measure 1200mm to 1480mm wide, 770mm to 840mm deep, and 2000mm to 2060mm tall including legs. That's roughly 4 to 5 feet wide, nearly 3 feet deep, and about 7 feet tall. Make sure you measure your doorways – some of these units are substantial!
Internal dimensions determine your actual usable space. A typical unit might offer internal dimensions around 1076mm wide by 690mm deep by 1495mm high. These generous interiors are designed to accommodate standard gastronorm pans, making them incredibly versatile for different food storage needs.
Footprint planning goes beyond just the unit itself. You'll need clearance for door swing, proper ventilation space, and easy access for cleaning and maintenance. A well-planned layout can transform your kitchen efficiency, while poor planning can create bottlenecks during busy service.
For more detailed comparisons and planning tips, our Detailed Guide to Comparing Commercial Refrigerators covers everything you need to know about sizing and selection.
Technical Specifications: What's Under the Hood?
When you're investing in an upright chiller 4 door, you're not just buying a pretty stainless steel box – you're getting sophisticated refrigeration technology that works around the clock to keep your ingredients fresh. Let me walk you through what makes these units tick, from cooling capacity to power requirements.
The heart of any commercial refrigeration unit lies in its technical components. These systems work together like a well-orchestrated kitchen team, each playing their part to maintain consistent temperatures whether you're dealing with the lunch rush or the quiet hours of the night.
| Feature | 4-Door Upright Chiller | 4-Door Upright Freezer |
|---|---|---|
| Temperature Range | +1°C to +8°C | -15°C to -22°C |
| Refrigerant | R134a (or R290) | R404a |
| Motor HP | Typically 3/8 HP | Typically 7/8 HP |
| Wattage | 480W - 565W | 808W |
| Amperage | 3.1A - 3.4A (up to 7.1A for some models) | Higher than chillers due to colder temps |
| Cooling System | Air Cooling System | Air Cooling System |
| Defrost System | Automatic Defrost (Forced Air) | Automatic Defrost (Forced Air) |
Think of cooling capacity as your unit's muscle – it determines how well your upright chiller 4 door can maintain those crucial temperatures even when your staff is constantly opening doors during peak service. A typical 4-door chiller delivers around 792W of cooling power, which is plenty to handle the demands of a busy commercial kitchen.
Both chillers and freezers rely on air cooling systems with automatic defrost functions. This forced air circulation isn't just about preventing ice buildup – it ensures every corner of your unit stays at the right temperature, so your ingredients in the back are just as fresh as those in front.
Temperature Ranges and Refrigerants
Here's where the rubber meets the road – or should I say, where the cold meets the food. The temperature range is what separates a chiller from a freezer, and understanding this difference can save you from costly mistakes.
Your upright chiller 4 door operates in that sweet spot between +1°C to +8°C. This range is perfect for keeping your fresh produce crisp, your dairy products safe, and your prepped ingredients ready for service. It's like having a gentle, consistent cool breeze that never gets too harsh.
Freezers, on the other hand, dive deep into sub-zero territory at -15°C to -22°C. These frigid temperatures are essential when you need to preserve frozen meats, seafood, or prepared meals for extended periods. The difference might seem obvious, but choosing the wrong unit can impact both food quality and energy costs.
Refrigerants are the unsung heroes of the cooling process. For chillers, R134a is the go-to choice – it's reliable, efficient, and gets the job done without fuss. Freezers typically use R404a because it performs better at those ultra-low temperatures.
Here's something exciting: many manufacturers now offer R290 (propane) as an eco-friendly alternative. This natural refrigerant has an incredibly low Global Warming Potential, making it a smart choice for environmentally conscious operators. It's like getting the same great performance while doing your part for the planet.
For detailed technical specifications on our refrigeration units, check out our technical catalog.
Power and Electrical Requirements
Let's talk about the electrical side of things – because nothing ruins a busy service like a tripped breaker or an improperly installed unit. Getting the power requirements right from the start saves headaches down the road.
Most upright chiller 4 door units run on standard commercial power: 220V or 230V AC. The frequency varies by region – you'll see 50Hz in many parts of the world and 60Hz in North America. Always double-check these specs for your specific location because getting this wrong can damage your equipment.
Wattage and amperage tell you how much power your unit will consume. Chillers typically draw between 480W to 565W with amperage around 3.1A to 3.4A. Some larger models might pull up to 7.1 Amps. Freezers need more juice to maintain those colder temperatures, often requiring 808W or more.
The compressor horsepower is another key spec to understand. Chillers usually sport a 3/8 HP motor, while freezers need the extra muscle of a 7/8 HP motor to push temperatures down to freezing levels. Think of it like the difference between a gentle fan and a powerful air conditioner.
Here's a pro tip from my years in the industry: always install your commercial refrigeration on a dedicated electrical circuit. These units run continuously, and sharing circuits can lead to voltage drops, overheating, and equipment failure. A dedicated circuit ensures your upright chiller 4 door gets the clean, consistent power it needs to keep your food safe.
Ready to explore more refrigeration options? Check out our guide: Keep Your Cool With These Restaurant-Ready Commercial Refrigerators.
Design, Installation, and Maintenance
The journey from unboxing your upright chiller 4 door to years of reliable service depends heavily on understanding its design philosophy, installing it correctly, and maintaining it properly. Think of it as setting up a reliable kitchen partner that'll keep your ingredients fresh through countless busy services.
The backbone of any quality upright chiller 4 door is its stainless steel construction. Most premium units, like the Inofrigo GN1410DT/D, feature AISI 304 18/10 stainless steel for both interior and exterior surfaces (excluding the rear panel and bottom). This isn't just about looking professional - though that polished appearance certainly doesn't hurt your kitchen's image.
Durability is where stainless steel truly shines. It resists the daily battle against dents, scratches, and the inevitable bumps that happen in busy kitchens. But more importantly for food safety, stainless steel is non-porous, meaning bacteria can't hide in tiny crevices, and odors won't linger from yesterday's fish delivery. The "free-of-dead-corners" design that many manufacturers incorporate makes cleaning thorough and straightforward.
Corrosion resistance becomes crucial when you consider the temperature swings and humidity your chiller faces daily. While cheaper materials might rust or deteriorate, quality stainless steel maintains its integrity year after year. Most units also feature an air cooling system for efficient temperature management and automatic defrost functions, reducing the manual work your staff needs to handle.
Installation and Placement Considerations
Getting your upright chiller 4 door installed correctly isn't just about finding a spot and plugging it in. The placement decisions you make now will affect your energy bills and equipment lifespan for years to come.
Ventilation space is absolutely critical. Your chiller works by moving heat from inside the cabinet to the outside air - but if that hot air can't escape, your compressor will struggle like a marathon runner with a stuffy nose. Keep those ventilation grille panels clear and allow proper clearance around the back and sides.
Level flooring might seem obvious, but it's surprising how many installation problems stem from uneven surfaces. An unlevel chiller strains the compressor, affects door sealing, and can lead to that annoying humming that keeps you awake at night. Most units come with adjustable stainless steel legs or optional casters to help you achieve perfect positioning.
Here's where many operators make a costly mistake: ambient temperature limits. Your chiller is designed to work in environments where the room temperature stays under 25°C with relative humidity below 60%. Place it next to your charbroiler or under a skylight, and you're asking it to fight an uphill battle it can't win.
Proximity to heat sources deserves special attention. That convenient spot next to your range might save steps, but it'll cost you in energy bills and potential breakdowns. Your chiller works hard enough without competing against your ovens and griddles.
For creative placement solutions in smaller spaces, our guide on Space Savers: Best Under Cabinet Freezers for Small Kitchens offers helpful insights.
Essential Maintenance and Warranty Terms
Your upright chiller 4 door is like a reliable kitchen team member - treat it well, and it'll serve you faithfully for years. Neglect it, and you'll face expensive repairs and potential food safety issues.
Regular cleaning goes beyond wiping down surfaces. The stainless steel construction makes this easier, but consistency is key. Food spills that seem harmless today become odor sources and potential health hazards tomorrow. The good news is that quality stainless steel surfaces clean up easily with standard commercial cleaners.
Gasket inspection deserves weekly attention. Those rubber seals around each door are your chiller's first line of defense against warm air infiltration. Even with auto-closing doors (a feature that's saved countless energy dollars), damaged gaskets will sabotage your efficiency. Most units feature cleanable and replaceable door gaskets, so catching problems early means simple fixes rather than major repairs.
The condenser coil cleaning task separates the pros from the amateurs. These coils, typically located at the bottom or back of your unit, collect kitchen grease, dust, and debris like a magnet. A dirty coil forces your compressor to work overtime, driving up energy costs and shortening equipment life. Monthly cleaning in high-volume kitchens, quarterly in lighter-use situations - it's the most important maintenance task you can do.
Professional servicing every three months by a qualified refrigeration engineer isn't just a recommendation - it's often a warranty requirement. These visits include checking refrigerant levels, testing electrical components, and catching small problems before they become expensive disasters.
Typical warranty terms for most upright chiller 4 door units include a standard 1-year parts warranty, as seen with models like the WRT-1075L-R4/F4, Inofrigo GN1410DT/D, and Hoshizaki HRW-127MS4. However, labor coverage varies, and warranties can be voided if you skip preventative maintenance or make unauthorized modifications. Some manufacturers even include clauses about equipment abuse - apparently, using your chiller as a stepladder isn't covered!
Understanding compliance standards helps protect your investment and ensures food safety. Check out our comprehensive guide: Cool Compliance: Your Guide to NSF/ANSI Standard 7 for Refrigerators and Freezers for detailed information on industry requirements.
Frequently Asked Questions about 4-Door Chillers
After helping hundreds of restaurant owners choose their refrigeration equipment, I've noticed the same questions come up again and again about upright chiller 4 door units. Let me share the answers that matter most for your business decision.
What is the main difference between a 4-door chiller and a 4-door freezer?
The difference comes down to one simple question: are you keeping food fresh for this week, or storing it for months?
Your upright chiller 4 door is all about fresh food preservation. It maintains that sweet spot of +1°C to +8°C where your produce stays crisp, your dairy products remain fresh, and your prepped ingredients hold their quality for days or weeks. Think of it as your short-term storage champion.
A 4-door freezer, on the other hand, is your long-term preservation hero. Operating at bone-chilling -15°C to -22°C, it essentially stops time for your food by freezing the water content and halting bacterial growth completely. This is where you store your frozen proteins, ice cream, and bulk ingredients for months.
The refrigerant types reflect these different jobs too. Chillers typically use R134a refrigerant because it's perfect for those moderate cooling needs. Freezers need the heavy-duty R404a refrigerant to reach those sub-zero temperatures consistently.
You'll also notice freezers work harder - they need 7/8HP motors compared to the 3/8HP motors in most chillers. It takes more muscle to keep things frozen than simply chilled.
Why is stainless steel the preferred material for commercial chillers?
Walk into any professional kitchen, and you'll see stainless steel everywhere. There's a reason for this, especially when it comes to your upright chiller 4 door.
Durability is the big winner here. Commercial kitchens are tough places - things get bumped, dropped, and knocked around constantly. AISI 304 stainless steel can handle this abuse without denting, scratching, or showing wear like other materials would.
But here's what really matters for food safety: stainless steel has a non-porous surface. This means bacteria can't hide in tiny cracks or pores like they can with other materials. Spills, splashes, and food residue wipe away completely, leaving no trace behind.
The ease of cleaning is a game-changer during your busy shifts. That smooth surface means you can sanitize quickly and thoroughly without worrying about hidden contamination. Many quality units feature that "free-of-dead-corners" design that makes cleaning even easier - no awkward angles where grime can hide.
Resistance to rust keeps your investment looking professional year after year. Kitchen environments are humid and harsh, but stainless steel shrugs off moisture and cleaning chemicals without corroding or staining.
And let's be honest - it just looks professional. Your upright chiller 4 door in gleaming stainless steel tells customers and health inspectors that you take food safety seriously. It's also required to meet NSF standards for commercial food equipment.
How often does a commercial chiller need professional maintenance?
Here's where I see too many restaurant owners make expensive mistakes. Your upright chiller 4 door needs professional maintenance every three months - no exceptions.
Think of it like this: you wouldn't skip oil changes on your delivery truck, right? Your chiller works just as hard, running 24/7 to keep your ingredients safe. Preventative maintenance catches small problems before they become big, expensive disasters.
This isn't a job for your kitchen staff. You need a qualified refrigeration engineer with the right tools and expertise to properly service these complex systems. They'll check things like refrigerant levels (low refrigerant often means a leak that reduces efficiency), clean those critical condenser coils that collect grease and dust, and test all the electrical components.
Here's the kicker - most warranty conditions require proof of this quarterly servicing. Skip the maintenance, and you could void your warranty right when you need it most. I've seen restaurant owners face thousands in repair bills because they couldn't prove they'd maintained their equipment properly.
The quarterly service pays for itself through energy savings alone. A well-maintained chiller runs efficiently, keeping your utility bills in check. Plus, you avoid the nightmare of losing a full chiller of ingredients during your busiest service because something failed.
Protecting your investment means treating your upright chiller 4 door like the critical business asset it is. Regular maintenance keeps it running smoothly, keeps your food safe, and keeps your operation profitable.
Conclusion: Choosing the Right Chiller for Your Business
Making the right choice for your commercial kitchen's refrigeration needs doesn't have to be overwhelming. Throughout this guide, we've walked through everything you need to know about the upright chiller 4 door - from its impressive 1000L-1400L+ capacity to the precise temperature control that keeps your ingredients perfectly fresh.
The key considerations we've covered paint a clear picture of why these units are such workhorses in busy kitchens. The large capacity means fewer trips to restock, while the four separate compartments let you organize everything from dairy to prepped vegetables without cross-contamination worries. The stainless steel construction isn't just about looks - it's about durability, hygiene, and meeting those strict NSF standards that keep your operation compliant.
Remember those technical details we discussed? The +1°C to +8°C temperature range for chillers versus the -15°C to -22°C for freezers makes all the difference in how you store your ingredients. And those power requirements - typically 220V-230V with 3/8HP motors for chillers - ensure you're getting efficient operation without breaking the bank on energy costs.
The long-term value of investing in quality really shows when you consider the maintenance side. Those quarterly professional maintenance checks we talked about? They're not just suggestions - they're your insurance policy for keeping everything running smoothly and protecting your warranty.
At Charbroilers.com, we've spent years helping restaurant operators find the right equipment for their kitchens. Whether you're outfitting a new location or upgrading your current setup, we understand that investing in quality commercial equipment is really investing in your business's success. Just like choosing the perfect charbroiler transforms your grill station, selecting the right upright chiller 4 door transforms how efficiently your kitchen operates.
Our Charbroilers.com expertise extends beyond just grills and fryers - we know that every piece of equipment in your kitchen needs to work together seamlessly. The financing options we offer are designed specifically for food service operations, making it easier to get the refrigeration capacity you need without straining your cash flow.
When you're ready to take the next step, choosing quality equipment today prevents headaches tomorrow. Your upright chiller 4 door will be working hard every single day, keeping your ingredients fresh and your operation running smoothly.
